N518
Naseiko

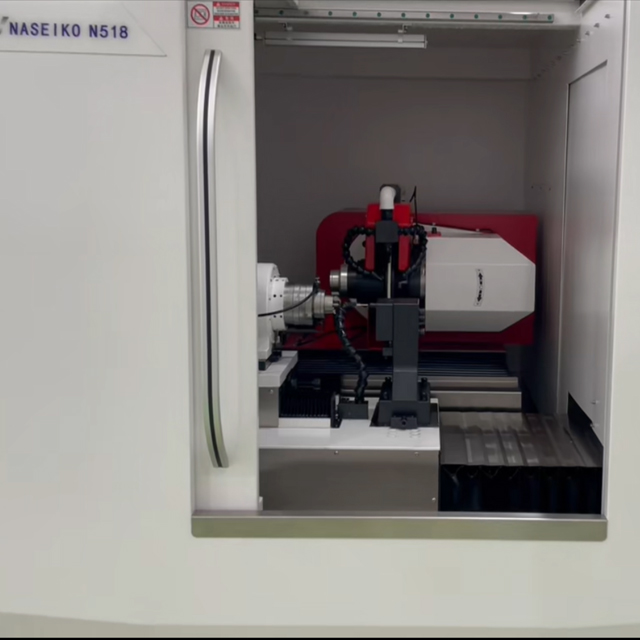

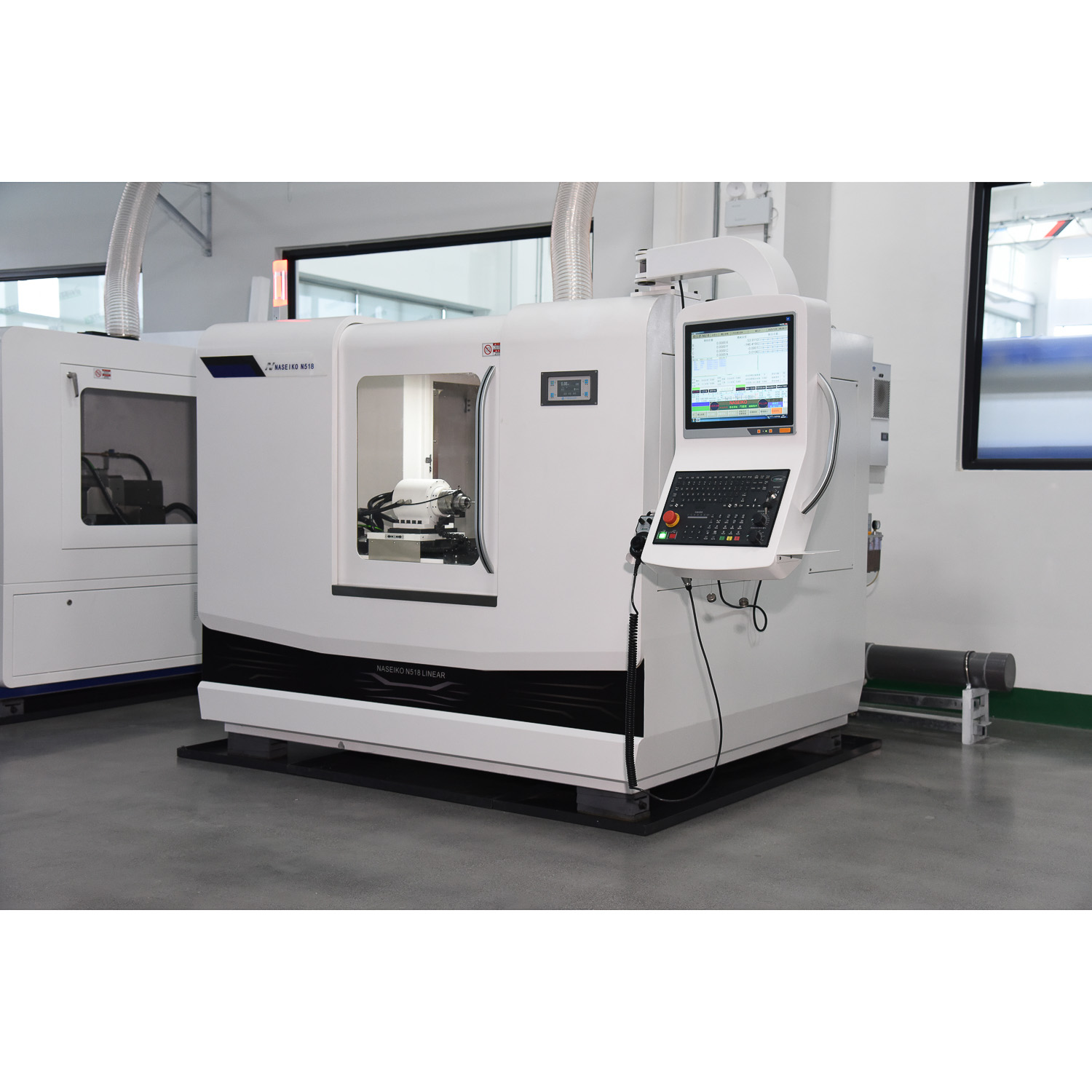

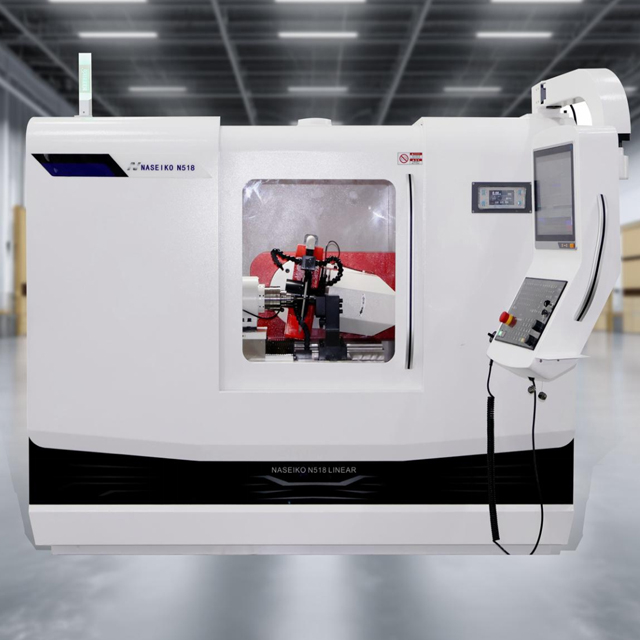

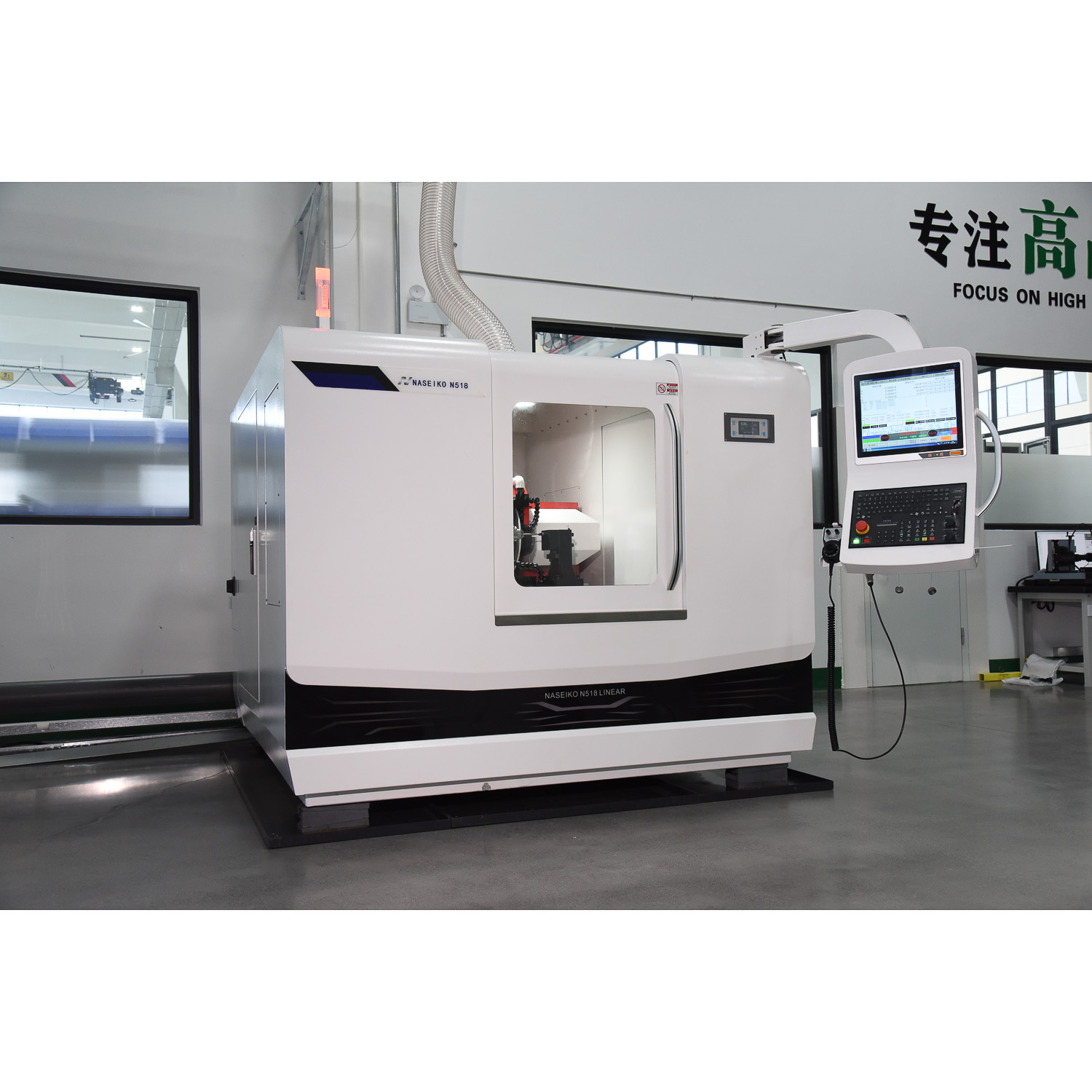

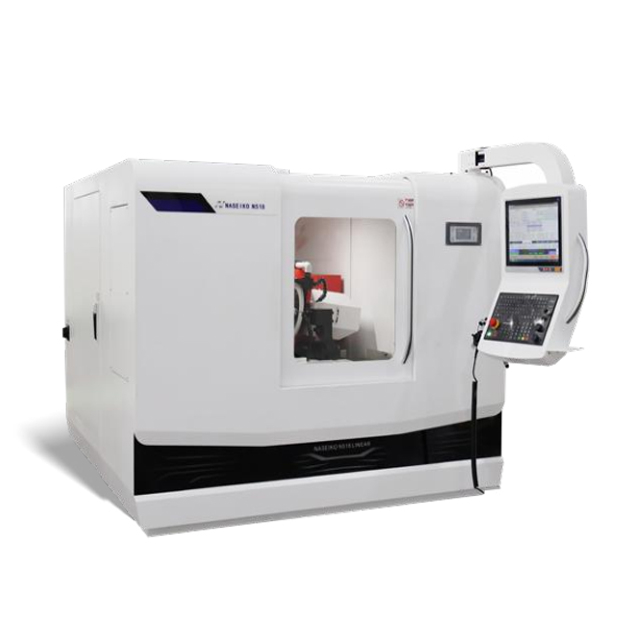

NZ-518 4-axis 3-axis CNC grinding machine
1. X-axis horizontal linear CNC axis, Taiwan HIWIN linear motor, SCHNEEBERGER
precision roller guide rail.
1.2 Y-axis horizontal linear CNC axis, Taiwan HIWIN linear motor, SCHNEEBERGER
precision roller guide rail.
1.3 A-axis: workpiece rotation indexing axis DD direct drive (customized in Taiwan).
1.4 Overall natural marble bed frame.
1.5 Sealed hood with front and side doors for easy maintenance.
1.6 Adopting a mobile hand pulse with a magnet for easy operation.
1.7 Special drive balanced permanent magnet electric spindle with permanent magnet
motor dedicated driver.
1.8 Install tube sealed oil proof LED lights inside the machine.
Note:
Guide rail Germany SCHNEEBERGER P grade
Linear motor Taiwan Shangyin
Taiwan Syntec servo motor (absolute value)
Taiwan's Syntec of CNC system (software; thread specific machining software 4.1)
| Paint model | White+gray black orange pattern |
| X-axis | CNC 3-axis linkage linear axis, Taiwan HIWIN (Shangyin) linear motor, power 4KW, rated torque TR=1139NM (9.3A), maximum TM=5250NM (57.5A), stroke: 580mm; CNC system resolution 0.001mm, programming and handwheel feed minimum resolution 0.001mm, guide rail SRG35-P repeat positioning accuracy: 0.003mm |
| Y-axis | CNC 3-axis linkage linear axis, Taiwan HIWIN (Shangyin) linear motor, power 4KW, rated torque TR=1139NM (9.3A), maximum TM=5250NM (57.5A), stroke: 310mm; CNC system resolution 0.001mm, programming and handwheel feed minimum resolution 0.001mm, guide rail SRG35-P repeated positioning accuracy: 0.003mm |
| A-axis | CNC 3-axis linkage workpiece rotation axis, DD servo direct drive, power 0.879KW, rated TR=28Nm (7.5A), maximum TM=56Nm (16.5A), indexing accuracy: 2 arc seconds (0.0005 degrees), rated speed: 300rpm, maximum speed: 400rpm, CNC system resolution: 0.001 degrees, programming and handwheel feed minimum resolution: 0.001 degrees, infinite rotation, indexing head body: radial runout: 0.001-0.005mm, end face runout: 0.001-0.005mm |
| Quickly move X.Y.Z | X/Y axis 35 m/min |
| Minimum workpiece diameter for clamping | 3mm |
| Maximum workpiece diameter for clamping | 20mm |
| Maximum workpiece clamping length | 230mm |
| Minimum workpiece diameter for main grinding | 1mm |
| Maximum workpiece diameter for main grinding | 25mm |
| Processing thread length | Greater than 150mm |
| Maximum workpiece weight for main grinding | 5kg |
| Linear resolution | 0.001mm |
| Linear repeat positioning accuracy | 0.003mm |
| Rotation resolution | 0.001mm |
| Rotation repeatability | 0.001 degrees |
| spindle power | Standard configuration: 15kW (optional: 20KW permanent magnet variable frequency motor with constant torque) |
| Grinding wheel rod form | Equipped with automatic dynamic balancing |
| Grinding wheel diameter | 300～ 350mm |
| Grinding wheel linear velocity | 0-80 m/s |
| Grinding wheel spindle speed | 4000-8000rpm infinitely adjustable: driver |
| machine tool weight | About 5500kg |
| Total power | ≤27.5kw |
Operating System:
1. Operating environment: Thread specific software (4Version 1), with simulation operation
software.
2. Display screen description: A 17 inch LCD screen that displays mechanical coordinates,
relative coordinates, absolute coordinates, and execution and engineering on the screen
A dialogue framework for operations such as equations.
3. Interface description: Thread processing specialized software (4The first version includes
parameters such as diameter, number of threads (number of slots), pitch, etc.
4. Keyboard: Thin film button keyboard, with letter and number keys integrated with the
display.
5. Hard drive: 256GB
6. Control system: Taiwan's new generation.
7. Data input and output methods: keyboard input, computer connection.
8. Simulation: 2D simulation, 3D simulation, 3D collision check, can see the shape of the
processed material, and modify the parameters based on the parameters obtained after
simulation.
9. Software package functionality:
10. Adopt the latest version with upgrade space available for upgrading.
