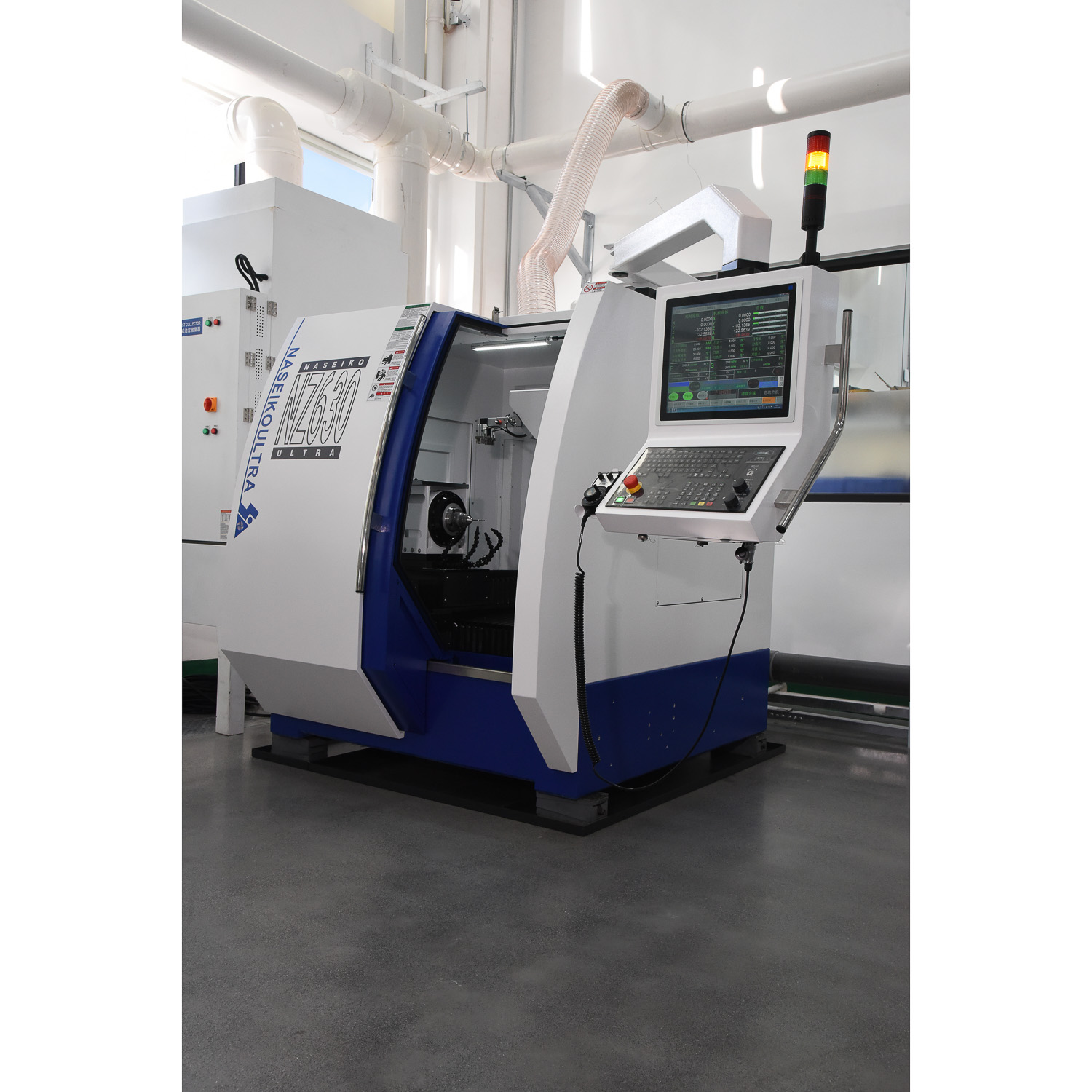

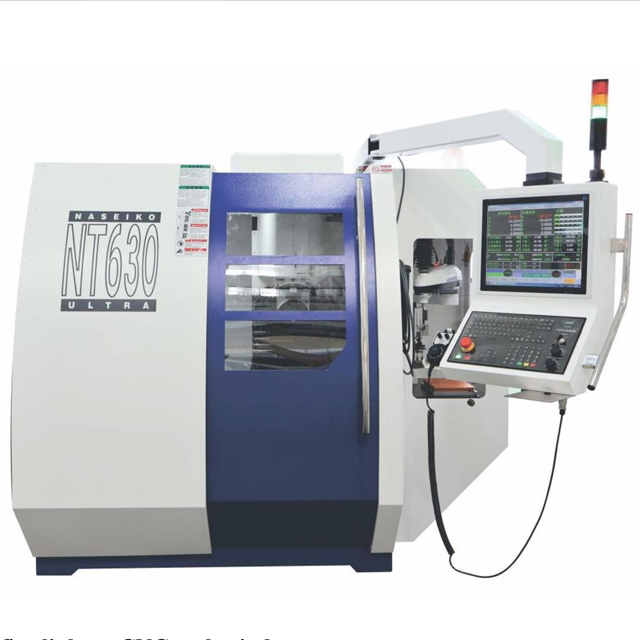

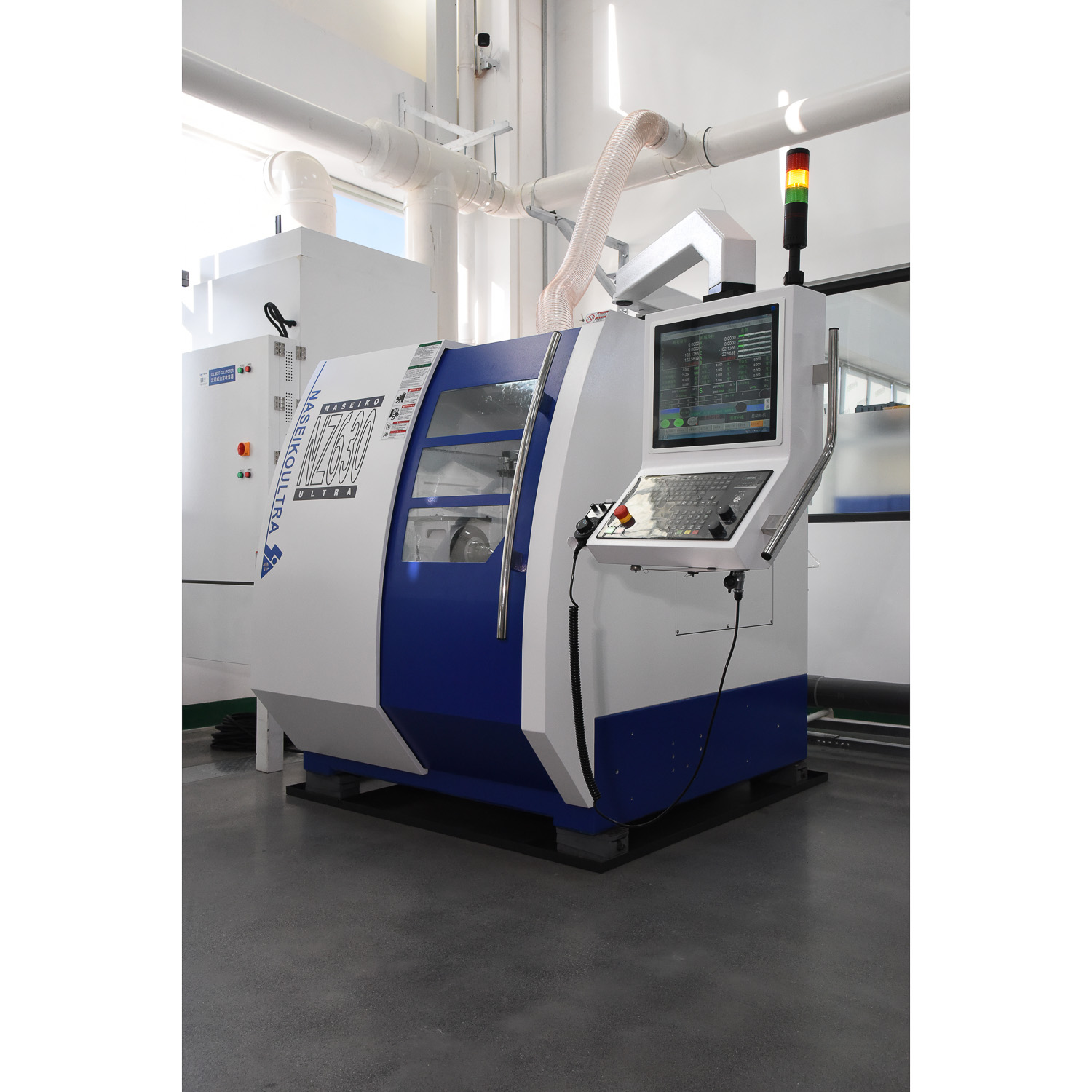

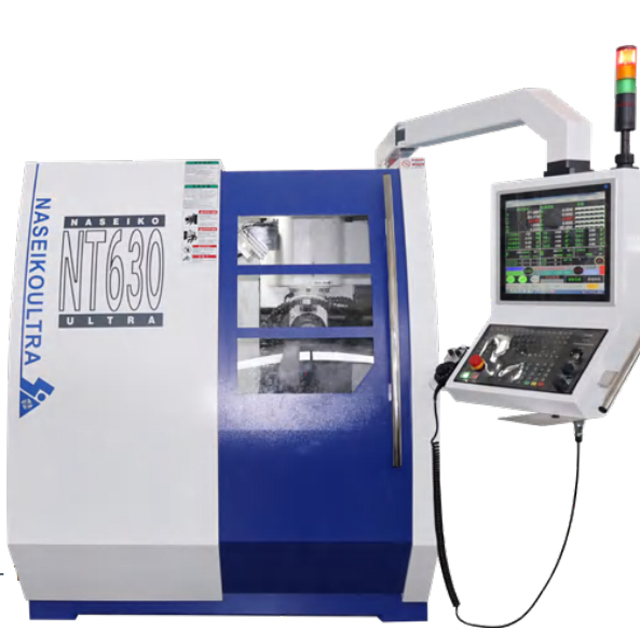

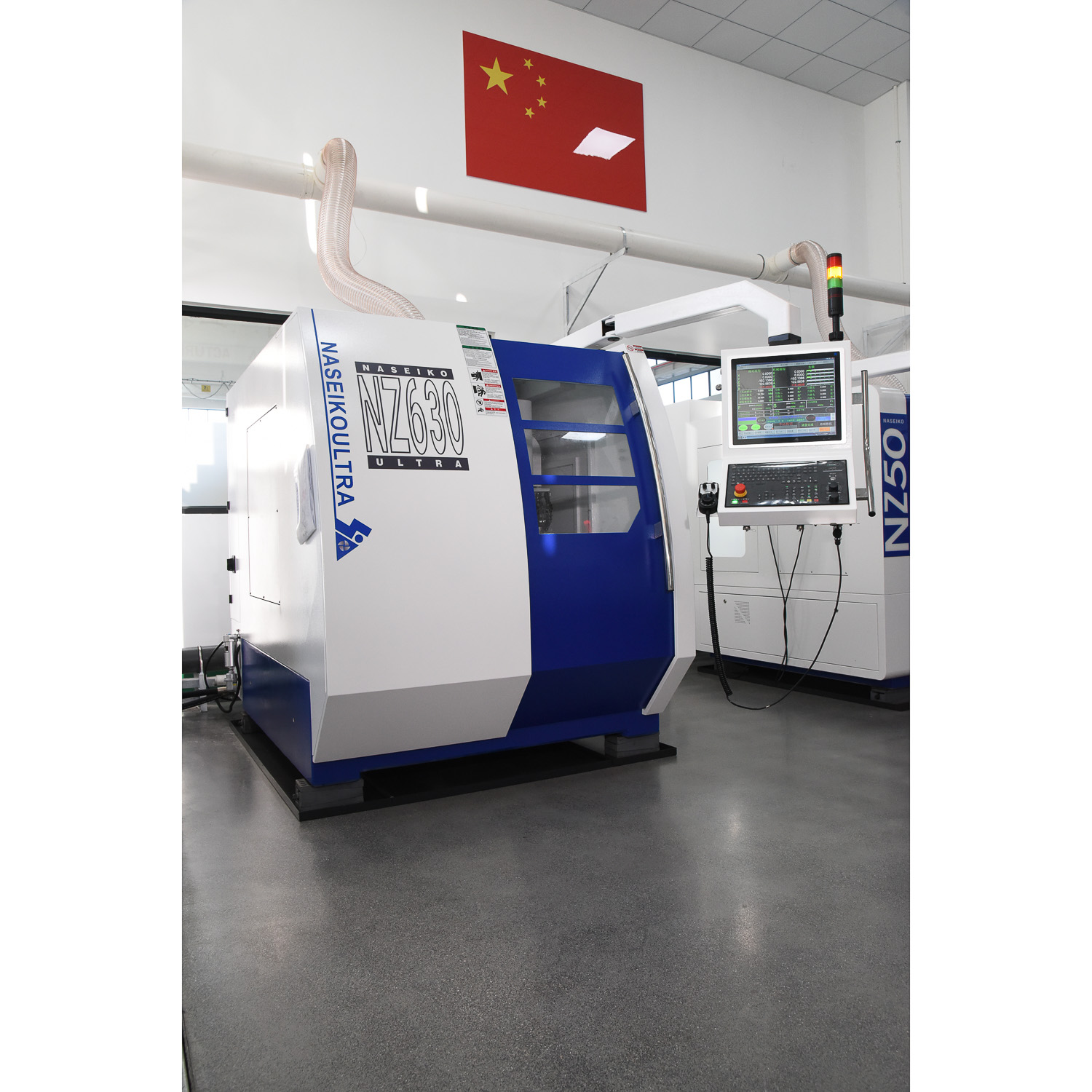

T630 Ultra
Naseiko
1.1 X-axis horizontal linear CNC axis, DMT (Sino German joint venture) linear motor, THK
precision ball bearing guide rail.
1.2 Y-axis horizontal linear CNC axis, DMT (Sino German joint venture) linear motor, THK
precision ball bearing guide rail.
1.3 Z-axis vertical straight line CNC axis, Taiwan's new generation servo motor, THK precision
ball screw, THK precision ball type guide rail.
1.4 A-axis: Workpiece rotation indexing axis DD direct drive (DMT Sino German joint venture).
1.5 B-axis: Rotary indexing axis DD direct drive (DMT Sino German joint venture).
1.6 Renishaw Precision Universal Probe (Workpiece Probe).
1.7 Overall natural marble bed and columns.
1.8 adopts a mobile handwheel with magnets for easy operation.
1.9 Special high-speed permanent magnet electric spindle, dual grinding head design HSK
grinding wheel flange can be disassembled as a whole to the grinding wheel dressing machine for
repairing the grinding wheel.
1.10 The spindle motor is equipped with a dedicated driver for permanent magnet motors.
1.11 Install tube sealed oil proof LED lights inside the machine.
Note:
| Guide rail Screw rod | Japan THK P class Japan THK C3 |
| Taiwan's new generation servo motor Taiwan New Generation CNC System | (Software: Tool Specific Processing Software 4.1) |
| Probe | Renishaw high-precision |
Technical parameters:
| content | data | content | data |
| Paint model | White blue orange pattern | Linear resolution | 0.001mm |
| Quickly move X.Y | 35m/min | Linear repeat positioning accuracy | 0.003mm |
| Quickly move Z | 7.5m/min | Linear repeat positioning accuracy | 0.003mm |
| Minimum diameter of clamped workpiece | 3mm | Rotation resolution | 0.001mm |
| Maximum diameter of clamped workpiece | 20mm | Rotation repeatability positioning accuracy | 0.001 degrees |
| Maximum length of main grinding workpiece | 250mm | spindle power | High end 12KW |
| Minimum diameter of main grinding workpiece | 1mm | Grinding wheel rod form | HSK50F-31.75mm/20mm |
| Maximum diameter of the main grinding workpiece | 12mm | Grinding wheel diameter | 70-150mm |
| Maximum blade length for main grinding | Greater than 100mm | Grinding wheel spindle speed | 1000~8000rpm infinitely adjustable |
| Maximum workpiece weight for main grinding | 5kg | machine tool weight | About 4000kg |
| Knife handle form | Shaw Berlin W25 | Total power | ≤29kw |
| Grinding machine size (length * width * height) | Grinding machine: 1950 * 2400 * 2100mm | ||
| X-axis | CNC 5-axis linked linear axis, DMT linear motor, power 2KW, rated torque TR=832NM(4.8A)， The highest TM is 1800NM (14.4A);Travel: 540mm; CNC system resolution 0.0001mm, programming and handwheel feed minimum resolution 0.001mm, guide rail SRG30-P repeat positioning accuracy: 0.003mm | ||
| Y-axis | CNC 5-axis linked linear axis, DMT linear motor, power 2KW, rated torque TR=832NM(4.8A)， The highest TM is 1800NM (14.4A);Travel: 460mm; CNC system resolution 0.0001mm, programming and handwheel feed minimum resolution 0.001mm, guide rail SRG30-P repeat positioning accuracy: 0.003mm | ||
| Z-axis | CNC 5-axis linked linear axis, driven by a new generation servo motor,with a power of 3KW (absolute value);Travel: 250mm; CNC system resolution 0.0001mm, programming and handwheel feed minimum resolution 0.001mm, THK lead screw BIF32, guide rail SRG35-P repeat positioning accuracy: 0.003mm |
| A-axis | CNC 5-axis linkage workpiece rotation axis, DD servo direct drive, power 1.37KW rated TR=83Nm (5.3A);Maximum TM=318Nm (28A);Rated speed: 200rpm;Maximum speed: 250rpm;Numerical control resolution: 0.0001 mm; minimum resolution for programming and handwheel feed is 0.001 degrees;Infinite rotation, indexing head body: taper hole cone surface runout ≤ 0.002mm, end face runout ≤0.005mm. |
| B-axis | CNC 5-axis linkage workpiece rotation axis, DD servo direct drive, power 2.2KW rated TR=259Nm (7.8A);Maximum TM=460Nm (17.9A);Rated speed: 50rpm;Maximum speed: 100rpm;Numerical control resolution: 0.0001mm; minimum resolution for programming and handwheel feed is 0.001 degrees;Rotate the circle to 270 degrees (-90 degrees -180 degrees);Rotation positioning accuracy: ± 5arc-sec. |
Operating System:
1. Operating environment: Tool specific software with simulation operation software.
2. Display screen description: A 17 inch LCD screen that displays the dialogue framework for
mechanical coordinates, relative coordinates, absolute coordinates, and executing
machining programs on the screen.
3. Interface description: The tool processing software includes parameters such as diameter,
number of threads (number of slots), helix angle, slot length, slot speed, slot depth
(incremental adjustment of slot depth), and helix direction (left or right rotation).
4. Keyboard: Thin film button keyboard, with letter and number keys integrated with the display.
5. Hard drive: 256GB
6. Control System: Taiwan New Generation.
7. Data input and output methods: keyboard input, computer connection.
8. Simulation: 2D simulation, 3D simulation, 3D collision check, can see the shape of the
processed material, and modify the parameters based on the parameters obtained after
simulation.
9 . Software package functionality:
a, Milling cutter software package: (including standard milling cutter, unequal section
milling cutter, unequal helix angle milling cutter, variable lead milling cutter, rough skin
milling cutter, taper milling cutter, dovetail milling cutter, multi edge milling cutter, taper ball
end milling cutter, etc.)
b, Drill bit software package: (including 18 kinds of drill point shape software, Fried Dough
Twists drill, step drill, drill milling cutter, step drill milling cutter, insert milling cutter, gun
drill, skip drill, chamfering cutter, centering drill, etc.)
c, Forming knife software package: (including various DXF spline curve anti type knives, Tshaped milling cutters, etc.)
d, Rotating file package: (including flat head rotating file, taper rotating file, ball head
rotating file, circular arc rotating file, DXF forming rotating file, etc.)
10. Adopting the latest version, leaving room for upgrade, can be upgraded
